5.5 Ton Trailers
The 5.5 Ton range of trailers are ideal when you require a higher volume and load capacity. Available in single or double wheels.

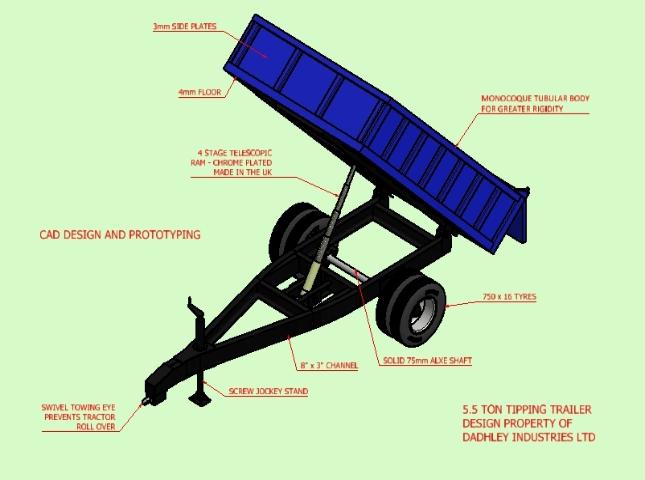

These trailers come with the following standard features:
    CAD designed
    Heavy duty chassis (Tipping)
    Monocoque tubular body and integrated chassis
    Monocoque tubular body for greater rigidity (Tipping)
    4 stage chrome plated ram made in the UK (Tipping)
    Swivel towing eye preventing tractor roll over
    75mm solid axle bolted to chassis hangers
    750 x 16 double wheels or 900 x 20 single wheel
Description
 5.5 Ton Non- Tipping

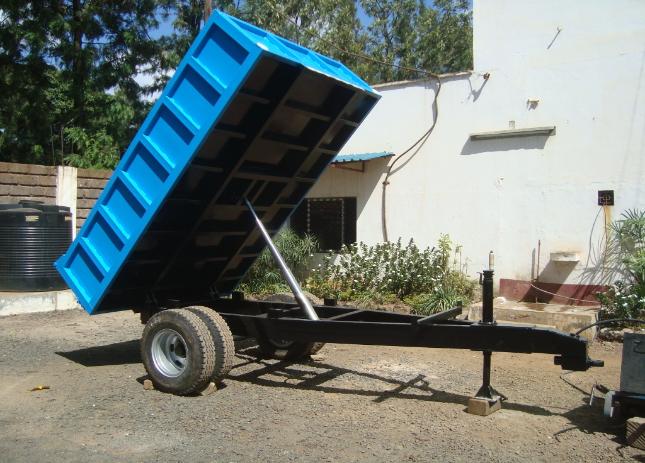

 5.5 Ton Tipping

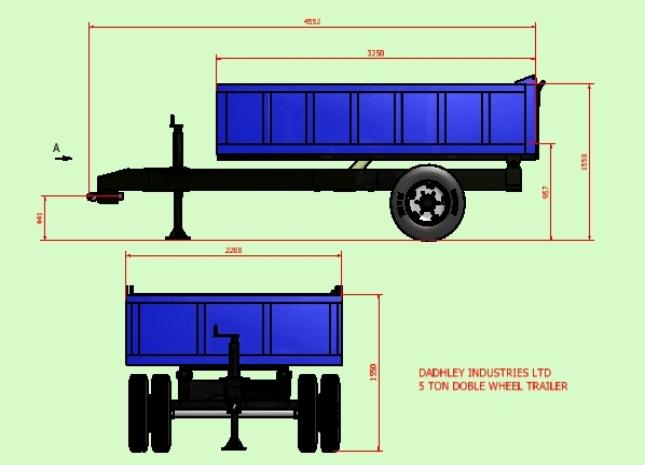

Body Size mm
 3150 x 2100 x 600
 3150 x 2100 x 600
Carrying Capacity Ton
 5.5
 5.5
Floor Thickness mm
 4
 4
Side Thickness
 3
 3
Lights
 On Request
 On Request
Side Loading Panels
 On Request
 On Request
Volume  Cu.Mtr (Cu.Ft)
 3.97  (140)
 3.97  (140)
Basic Trailer Weight  Kgs
 1150
 1400
Loading Height Basic  mm
 960
 960
Tyre Size
 750 x 16 Double Wheel
 750 x 16 Double Wheel
Axle  mm
 75mm solid
 75mm solid
Brakes
 On Request
 On Request
Tractor Type
