Dadhley Industries Ltd
Trailers
4 / 4.5 Ton Trailers

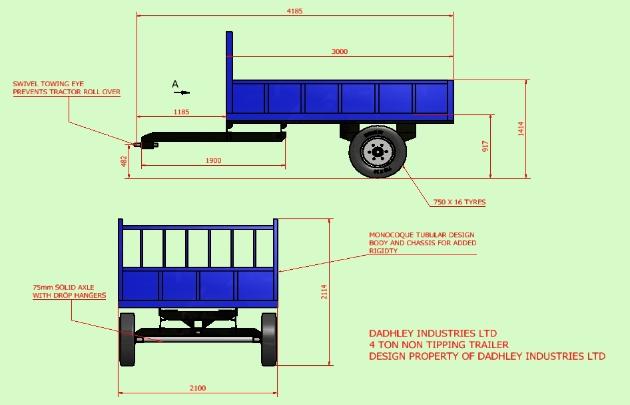

4 Ton Non-Tipping

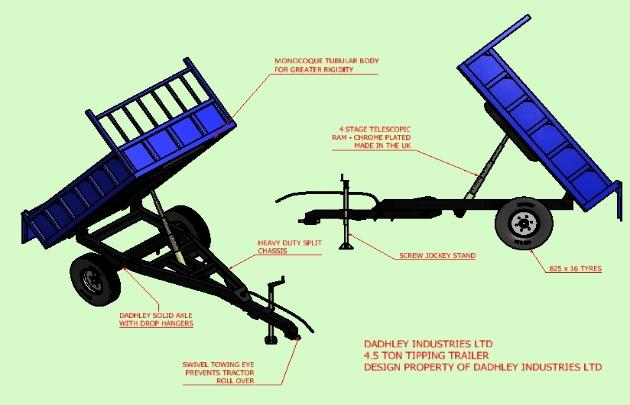

4.5 Ton Tipping
The 4 Ton range of trailers are our most popular sellers being designed for general purpose use and transportation.
These trailers come with the following standard features:
    CAD designed
    Heavy duty split chassis (Tipping)
    Monocoque tubular body and integrated chassis
    Monocoque tubular body for greater rigidity (Tipping)
    4 stage chrome plated ram made in the UK (Tipping)
    Swivel towing eye preventing tractor roll over
    75mm solid axle bolted to chassis hangers
    750 x 16 tyres
    825 x 16 tyres and reinforced steel rims (Tipping)
Description
 Body Size
mm (internal)
 Carrying
Capacity
(Tons)
 Floor
Thickness
mm
 Side
Thickness
mm
 Lights
 Side Loading
Panels
 Volume
cu.mtrs (cu.ft)
 Basic Trailer
Weight
Kgs
 Loading Height
Basic
mm
 Tyre Size
 Axle
mm
 Brake
 Tractor Type
4 Ton
Non-Tipping
 2900 x 2000 x
500
 4
 3
 2
 On Request
 On Request
 2.9 (102)
 1100
 920
 750 x 16
 65 solid
 On Request

4.5 Ton
Tipping
 2900 x 2000 x
580
 4.5
 3
 2
 On Request
 On Request
 3.36 (118)
 1300
 1000
 825 x 16
 65 solid
 On Request

4.5 Ton
Tipping
Heavy Duty
 2900 x 2000 x
580
 4.5
 4
 3
 On Request
 On Request
 3.36 (118)
 1400
 1000
 825 x 16
 65 solid
 On Request
